Kowa JC5MC 5MP C-Mount Industrial Lenses
High-Resolution Imaging in a Compact Package
Meet the JC5MC line up
-
ULTRA COMPACT
high-quality imaging in a space-saving design, making them ideal for integration into tight spaces, robotic systems and compact industrial equipment.
-
HIGH RESOLUTION
Supporting resolutions up to 5 megapixels, the JC5MC series delivers sharp, detailed images for accurate inspection, precise measurement and reliable defect detection.
-
LOW DISTORTION
Low-distortion optics minimise image deformation, ensuring accurate reproduction of shapes and dimensions for precise inspection.
Engineered for precision, reliability, and extreme environments

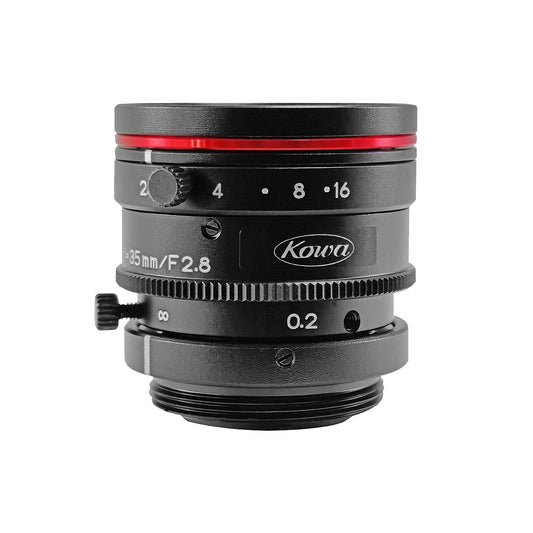

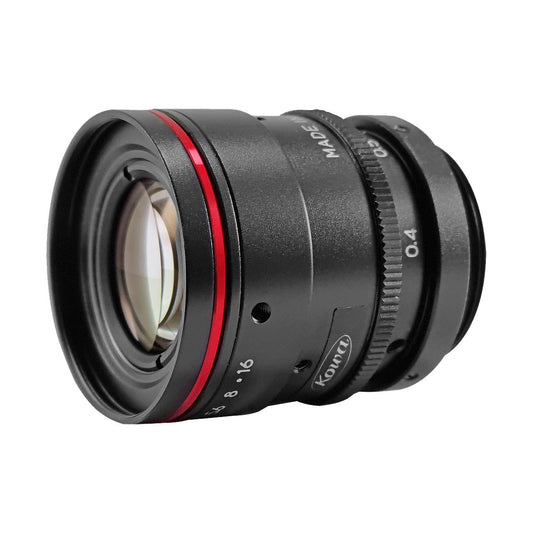

The Kowa JC5MC Series is a family of ultra-compact 5 megapixel C-mount lenses designed for cameras using sensors up to 2/3" and pixel sizes down to approximately 3.45 µm. Available in 8mm, 12mm, 16mm, 25mm, 35mm, and 50mm focal lengths, the JC5MC Series combines high optical resolution, low distortion, and a compact mechanical design for demanding imaging systems.
JC5MC lenses are well suited for machine vision, factory automation, robotic vision, inspection, measurement, 3D imaging, automotive systems, agriculture, UAV/drone imaging, research, instrumentation, and other industrial or specialty imaging applications where image quality and installation space are important.
JC5MC Series at a Glance
- Sensor Format: Up to 2/3"
- Resolution: 5 Megapixel
- Pixel Size: Down to approximately 3.45 µm
- Mount: C-Mount
- Focal Lengths: 8mm, 12mm, 16mm, 25mm, 35mm, 50mm
- Lens Type: Fixed focal length
- Design: Ultra-compact industrial imaging lens
